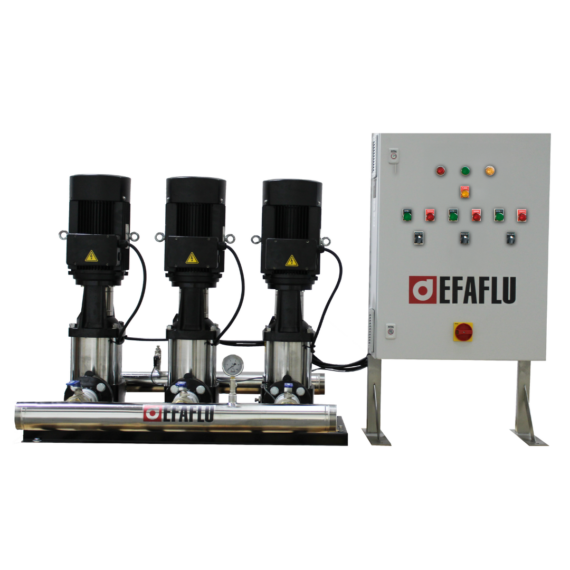

AQUA Master
High-performance and reliable solution with low initial investment.
- Booster set.
- Designed for two or more pumps in parallel.
- Star-delta starting method.
- Constant speed.
- Maximum reliability and robustness.
- Pump switch and cascade operation.
- Calibrated and factory-tested equipment.
- Silent operation.
- Maximized automation for a better user experience.
- Reduced maintenance.
- Control by highly reliable pressure switches.
System Customization:
- Can be customized according to customer and/or application requirements.
MASTER CONTROLLER FEATURES:
- Controller with 2.2-inch monochrome panel (systems up to 2 pumps and maximum of 45 kW).
- LED pilots with AUTO/0/MAN selectors (3-pump systems)
- Hight reliabity
- User-friendly operation
PUMPS TO BE USED
- Type: Verical Multistage
- Series: BMVE| BMVET| BMVETi
- Installed power: 5,5 kW up to 110 kW (per pump)
ADDITIONAL OPTIONS AVAILABLE INCLUDE
- IE4 efficiency class electric motors.
- Phase failure protection
- Phase reversal protection
- Differential protection
- Toroidal protection
- Protection against lightning strikes
- GSM communication module
- Membrane hydropneumatic reservoir in AISI 304
- Membrane hydropneumatic reservoir in fiber glass
- AISI 304 suction manifold (AISI 316 option available)
- General shutoff valves (suction and compression)
SYSTEM CONSTRUCTION
- Baseplate: AISI 304
- Painting: water-based, moisture-resistant
- Compression manifold: AISI 304
- Valves: Pump shutoff and check valves (compression)
- Accessories: Pressure switches (1 per pump) and analog pressure gauge (compression)
- Hydropneumatic reservoir: Vertical, replaceable EPDM membrane specific for potable water
- MASTER control panel: IP54 metal protection frame, incorporating star-delta starters and pump switching relay.
- Level switch: Dry run protection.
WORKING LIMITS(50 Hz)
- Maximum flow rate (per pump): Up to 200 m³/h
- Head: Up to 305 meters
- Maximum fluid temperature: 120ºC
- Maximum ambient temperature: 40ºC
- Maximum operating pressure: 25 bar (40 bar for specific models)
