New

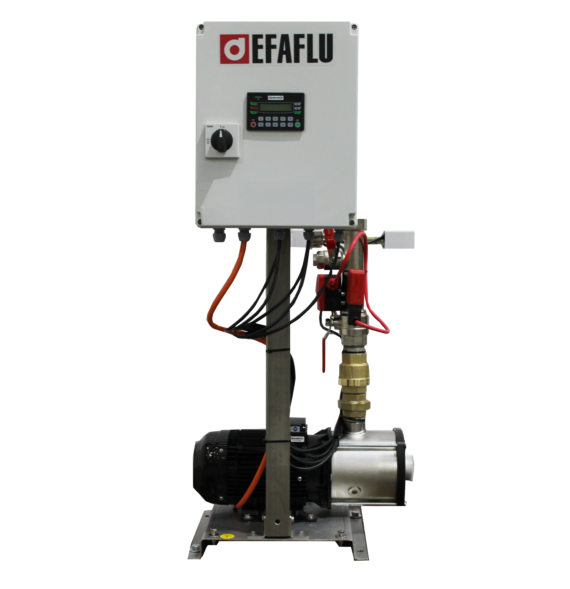

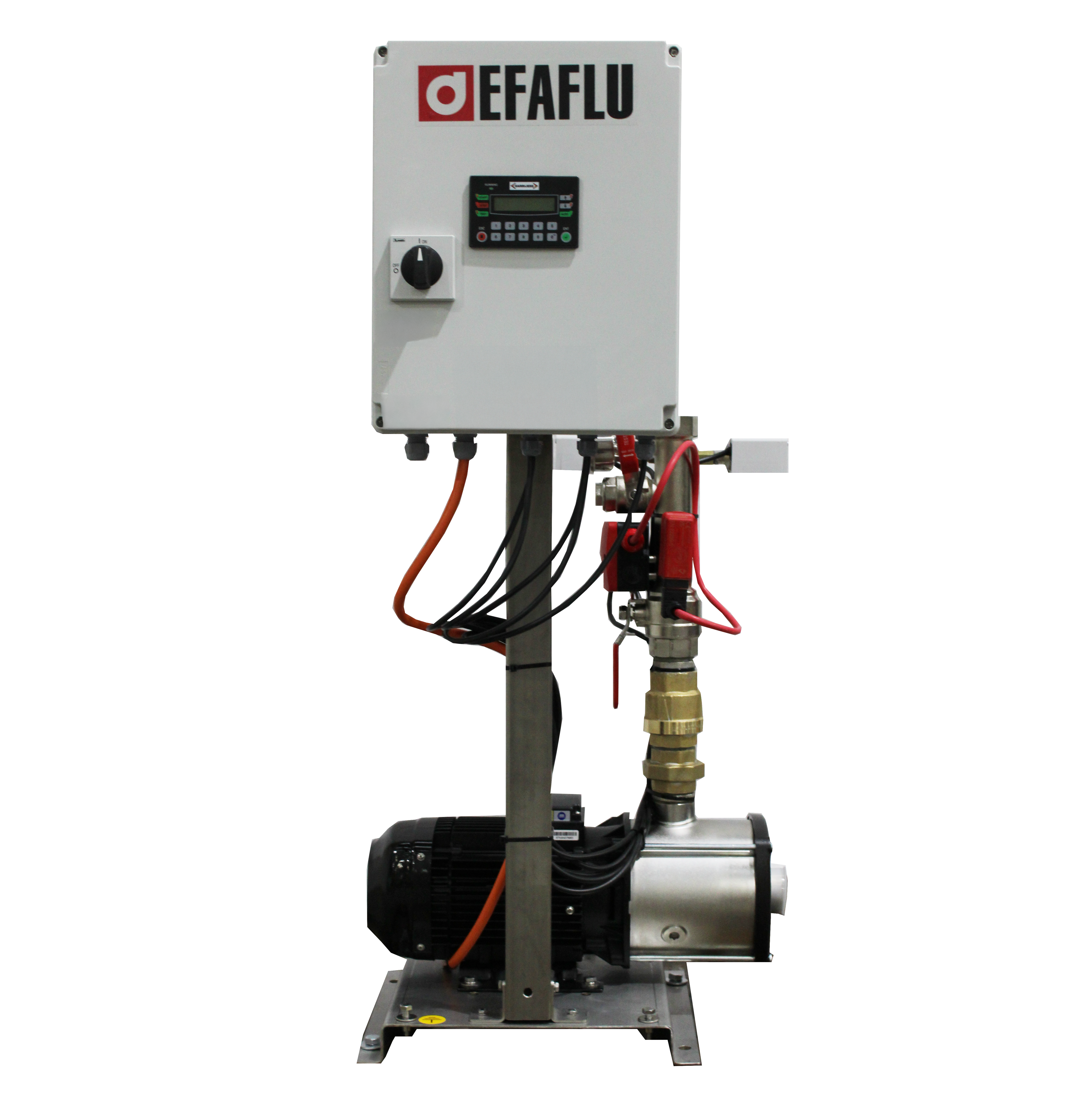

STOPFIRE Residential CAT. 2-4
INTELLIGENTLY DESIGNED, RELIABLE IN PROTECTION, SECURING PEOPLE, BUILDINGS AND BUSINESSES
- Available in two configurations: horizontal and vertical.
- Fully compliant with BS9251:2021 standard.
- Residential firefighting system (CAT. 2-4)
- Fully pre-assembled pump system on a robust base.
- Compact design, available in a wide range of flow rates and pressures.
- ‘Plug-and-play’ unit – no extensive wiring required.
- Pre-wired and pre-piped system, ready to install.
- Ball valve fitted at the outlet, eliminating the need for additional fittings.
- Fully factory-tested and supplied ready for use.
APPLICATIONS
- CAT. 2: Apartment blocks and terraced houses up to 18 metres in height.
- CAT. 3: High-risk or multi-occupancy properties, including care homes, student accommodation and multi-occupancy dwellings.
- CAT. 4: High-rise residential buildings and apartment blocks over 18 metres in height.
COMPOSITION
- 2 independent pressure switches for greater control
- Pressure gauge for accurate pressure monitoring
- LPCB-certified flow switch, ensuring safety and reliability
- Solenoid valve, specially designed to simplify weekly testing
ADDITIONAL OPTIONS AVAILABLE
- Monitored valves, for an extra level of safety
SYSTEM CONSTRUCTION
- Manifold: AISI 304
- Fitting: Brass
- Check valve: Brass or AISI 304
- Pump body: Cast iron or AISI 304
- Impeller: AISI 304
- Seal: AISI 304
- Base-plate: AISI 304
OPERATING LIMITS
- Nominal flow: Up to 30–750 l/min
- Nominal pressure: 1–20 bar
- Maximum pressure: 10–20 bar
- Start-up type: DOL or SD
