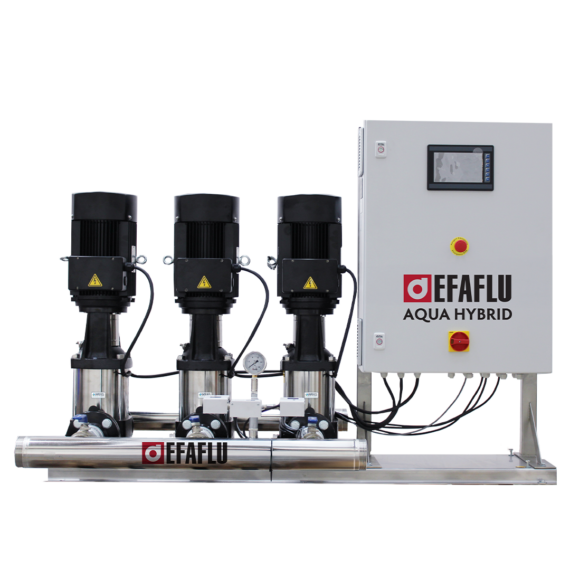

AQUA Hybrid
The ideal solution for energy savings, high reliability and domestic or residential water supply and Sprinklers solutions in accordance with BS9251:2014.
- Constant pressure at variable flow rate
- Suitable for sprinklers applications
- Flexibility in various operating options
- High energy savings
- Factory tested
- Touch panel for easy navigation
- Minimum maintenance
- Prepared to communicate with management system
The dual system includes a Hybrid Controller that operates in two modes:
- Normal water supply with constant pressure.
- Automatic Fire Mode activates maximum speed for the sprinklers when needed.
APPLICATIONS
Domestic and Residential:
- Individual dwelling houses
- Individual flat
- Multiple occupation homes
- Student accommodation
- Hostels
- Restored Hotels
- Sheltered and extra Care housing
PUMPS TO BE USED
- Type: Vertical Multistage
- Series: BMVET/Ti
- Construction: AISI 304/316 stainless steel
- Installed power: from 0,75 up to 110kW
SYSTEM CONSTRUCTION
- Baseplate: AISI 304
- Painting: Resistant to humidity
- Discharge manifold: AISI 304
- Valves: Section and non return per pump
- Discharge: Pressure transducer and pressure gauge
- Pressure Vessel: Replaceable membrane, for drinking water, up to 300l.
- Float switch: Dry run protection
- Optional: Suction manifold
WORKING LIMITS(50 Hz)
- Maximum Flow: up to 200 m3/h
- Head: up to 138 m
- Maximum operating pressure: Up to 14 bar
EQUIPPED WITH
- Section and non-return valve per pump
- Pressure transducer and pressure gauge
- Pressure Vessel: Replaceable membrane, for drinking water, up to 300L
- Float Switch: Dry run potection (to be installed in suction tank, if applicable)
Optionals
- Suction manifold in AISI 304
- Any other specialities
