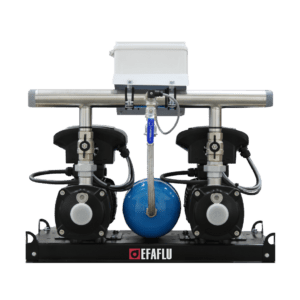

AQUA Profissional
More performance with reduced costs!
- Booster set.
- Solutions up to 3 pumps in parallel.
- Direct-on-line (DOL) starting method.
- Constant speed.
- Maximum reliability and robustness.
- Pump switch and cascade operation.
- Calibrated and factory-tested equipment.
- Silent operation.
- Maximized automation for a better user experience.
- Reduced maintenance.
- Control by highly reliable pressure switches.
System Customization:
- It can be customized according to customer and/or application requirements.
PROFESSIONAL CONTROLLER FEATURES
- Controller with a 2.2-inch monochrome panel (systems up to 2 pumps)
- LED pilots with AUTO/0/MAN selectors (3-pump systems)
- Hight reliabity
- User-friendly operation
PUMPS TO BE USED
- Type: Verical Multistage
- Series: BMVE| BMVET| BMVETi
- Installed power: up to 4.0 kW (per pump)
ADDITIONAL OPTIONS AVAILABLE INCLUDE
- IE4 efficiency class electric motors.
- Instantaneous current monitoring (2.2-inch panel model)
- Thermal protection adjustment
- Phase failure protection
- Phase reversal protection
- Differential protection
- Toroidal protection
- Protection against lightning strikes
- GSM communication module
- Membrane hydropneumatic reservoir in AISI 304
- Membrane hydropneumatic reservoir in fiber glass
- AISI 304 suction manifold (AISI 316 option available)
- General shutoff valves (suction and compression)
SYSTEM CONSTRUCTION
- Baseplate: Painted steel plate
- Painting: water-based, moisture-resistant
- Compression manifold: AISI 304
- Valves: Pump shutoff and check valves (compression)
- Accessories: Pressure switches (1 per pump) and analog pressure gauge (compression)
- Hydropneumatic reservoir: Vertical, replaceable EPDM membrane specific for potable water
- Professional control panel:
- IP54 plastic protection frame, DOL start, and pump switching relay (up to 2 pumps)
- IP54 metal protection frame, DOL start, and pump switching relay (3 pumps)
- Level switch: Dry run protection.
WORKING LIMITS(50 Hz)
- Maximum flow rate (per pump): Up to 830 m³/h
- Head: Up to 208 m
- Maximum fluid temperature: 120ºC
- Maximum ambient temperature: 40ºC
- Maximum operating pressure: Up to 25 bar
